| Place of Origin: | China |
|---|---|
| Brand Name: | ZW |
| Model Number: | DH220-5/R260-5/LG200/LG925/SY215/SY235/XCM215/XCM225/XCM322 |
| Minimum Order Quantity: | 1 piece |
| Price: | US $ 500-1000 |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Product Name: | Travel Reducer | Model: | DH220-5/R260-5/LG200/LG925/SY215/SY235/XCM215/XCM225/XCM322 |
|---|---|---|---|
| Material: | Iron |

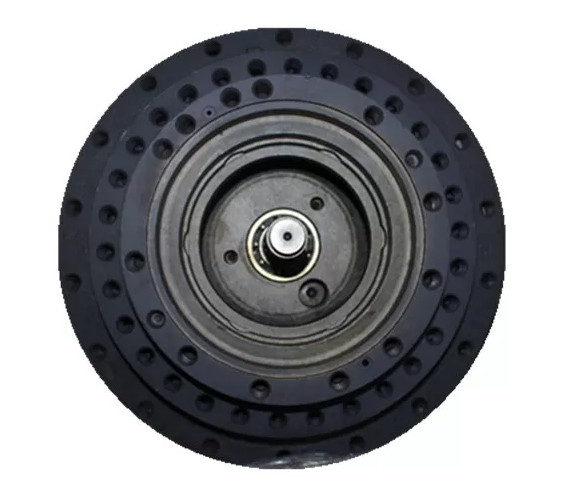

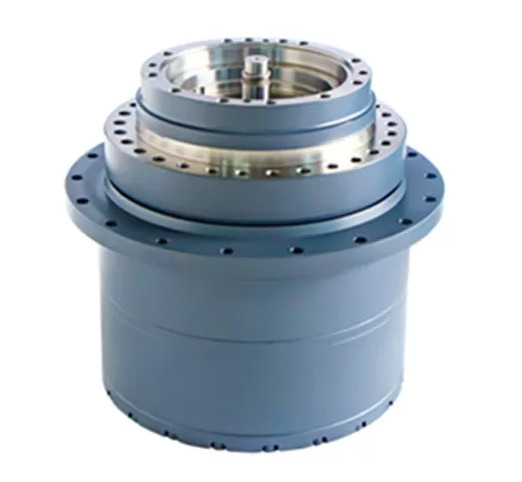

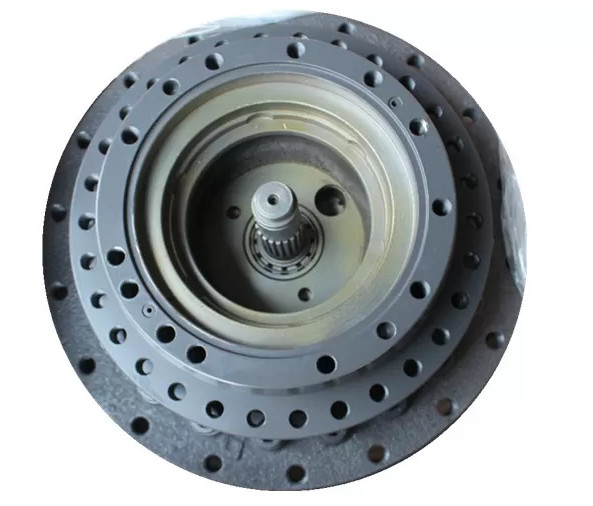

ZW DH220-5/R260-5/LG200/LG925/SY215/SY235/XCM215/XCM225/XCM322 Digger Travel Gearbox reducer Final Drive Reduction
| DH220-5/R260-5/LG200/LG925/SY215/SY235/XCM215/XCM225/XCM322 | |
| Rack mount holes | 30-M16 |
| Drive tooth mounting hole | 30(22+8)-M16 |
| Motor connection hole | 12-M16 |
| Applicable models | DH220-5/R260-5/LG200/LG925/SY215/SY235/XCM215/XCM225/XCM322 |
The information needs to check: The part number and the picture of your used gearbox.
For the common type, we can check the parts directly.
We have been the factory agent this year, so the price of our parts will be better than other suppliers.
Our products are developed according to the product parameters, It's perfectly replaceable. That means you can buy a replacement product for less money.
Our advantages:
1 . Strong part number system
If you can provide the right model and part number, we can check with the information you sent me and supply the right product.
2 . Professional and experienced salesperson.
Our founder has been in this field for more than 7 years, with rich experiences. We will conduct professional knowledge training and assessment for sales staff every month.
3 . Strict and complete company rules.
We will try our best to meet the customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
4 . Good management system.
No matter how big or small the order is, as long as customers place the order, we will provide exporting service free for charge.
5 . Good service attitude.
If the customer has any questions about the product, In our receiving and knowing the situation, we will help the customer to solve the problem in the first place. As long as customers’ requirements are reasonable, we will endeavor to make them satisfied.
Part number system
| # | Part No | Part Name | Comment | Qty. |
| - | K9005741 | GEAR, REDUCTION, TRAVEL | 76 kg | 1 |
| 101 | K9005742 | FLANGE, HOLDER | 21 kg | 1 |
| 102 | K1000470 | SEAL, FLOATING | 1 kg | 2 |
| 103 | 1.121-00086 | NUT, RING | 1 kg | 1 |
| 104 | 2181-1116D3 | PLUG, HEX. SOCKET | PT3/8 | 4 |
| 105 | K9005743 | HOUSING | 19 kg | 1 |
| 106 | S6250141 | BALL, STEEL | 1 kg | 104 |
| 107 | 2181-1116D1 | PLUG, RECHECK | 97123-01111 | 3 |
| 108 | 1.403-00130 | GEAR, PLANETARY | 1 kg | 4 |
| 109 | 1.114-00516 | WASHER, THRUST | 4 | |
| 110 | 1.120-00065 | SCREW | 4 | |
| 111 | 1.109-00060 | BEARING, NEEDLE | 4 | |
| 112 | 1.114-00004 | COLLAR | 4 | |
| 113 | 1.412-00160 | PLATE, THRUST | 1 | |
| 114 | 1.403-00112 | GEAR, SUN | 1 | |
| 115 | S6500480 | RING, RETAINING | 1 | |
| 116 | 1.429-00017 | HOLDER | 2 kg | 1 |
| 117 | 1.403-00068 | GEAR, PLANETARY | 1 kg | 3 |
| 118 | 1.109-00059 | BEARING, NEEDLE | 3 | |
| 119 | 1.216-00021A | RACE, INNER | 3 | |
| 120 | S5740890 | PIN-SPRING CL | 3 | |
| 121 | 1.405-00029 | GEAR, DRIVE | 1 | |
| 122 | 1.412-00161 | PLATE, THRUST | 1 | |
| 123 | 1.430-00041A | COVER | 5 kg | 1 |
| 124 | S2208871 | BOLT HEX SOCKET HD CL | 12 | |
| 125 | 1.109-00006 | BEARING, ANGULAR | 4 kg | 1 |
| 126 | 2180-1217D147 | O-RING | 1 | |
| 127 | S8002000 | O-RING, (P 200) | 1 | |
| 128 | 2181-1890D3 | PLUG, SP | PF3/8 | 3 |
We Supply Various Pump Assy & Spare Parts
Can Provide More Specifications & Dimensions, If You Need it.
| Cylinder Block | Valve Plate | Piston Shoe | Set Plate | Ball Guide |
| Coil Spring | Drive Shaft | Swash Plate | Servo Piston | Gear Pump |
| Regulator | Socket Bolt | Rotor | Spacer | ... |
- - - Inquiry to get the lowest price ! - - -
